3d Printed Box for the VK5TM Noise Canceller

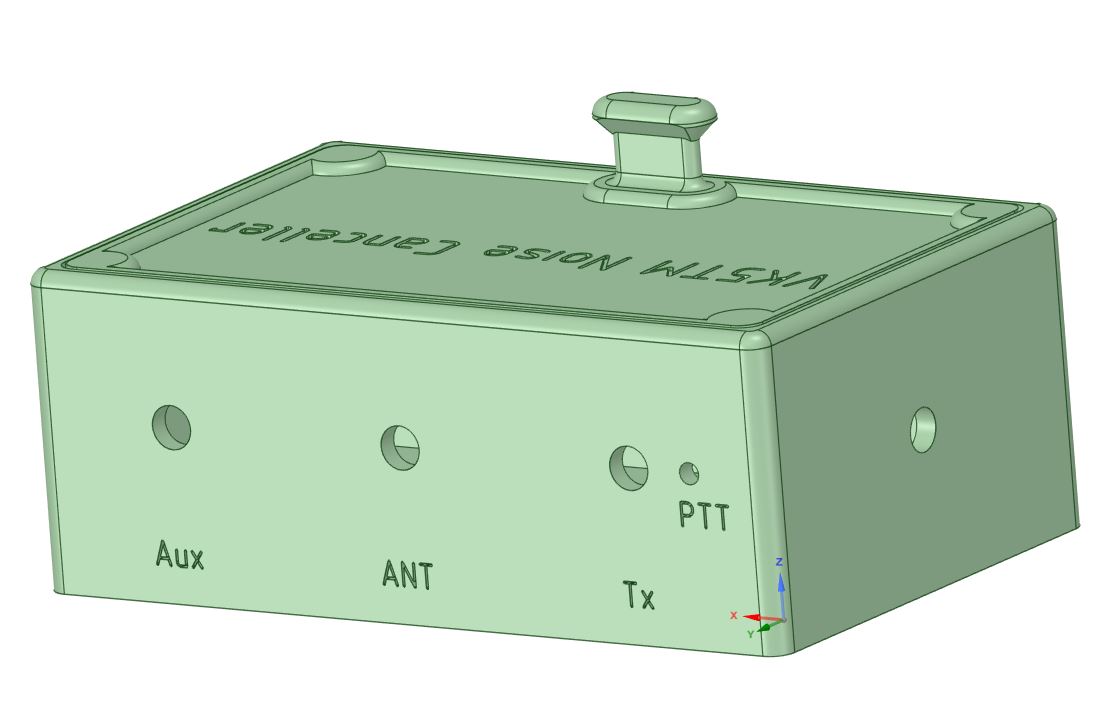

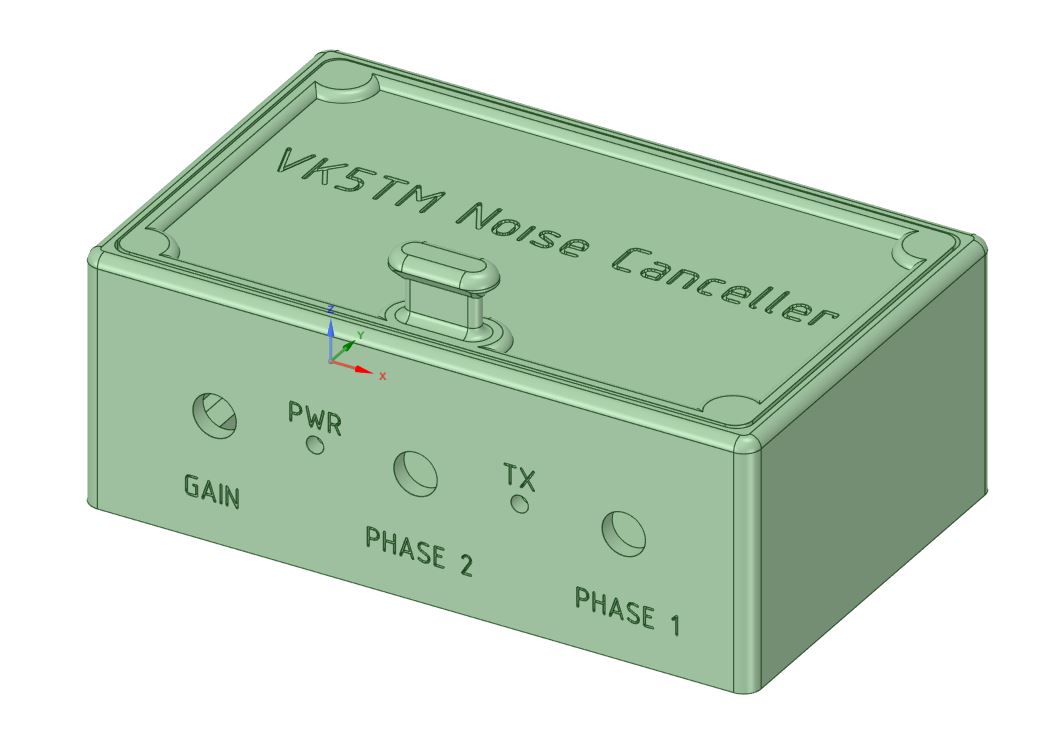

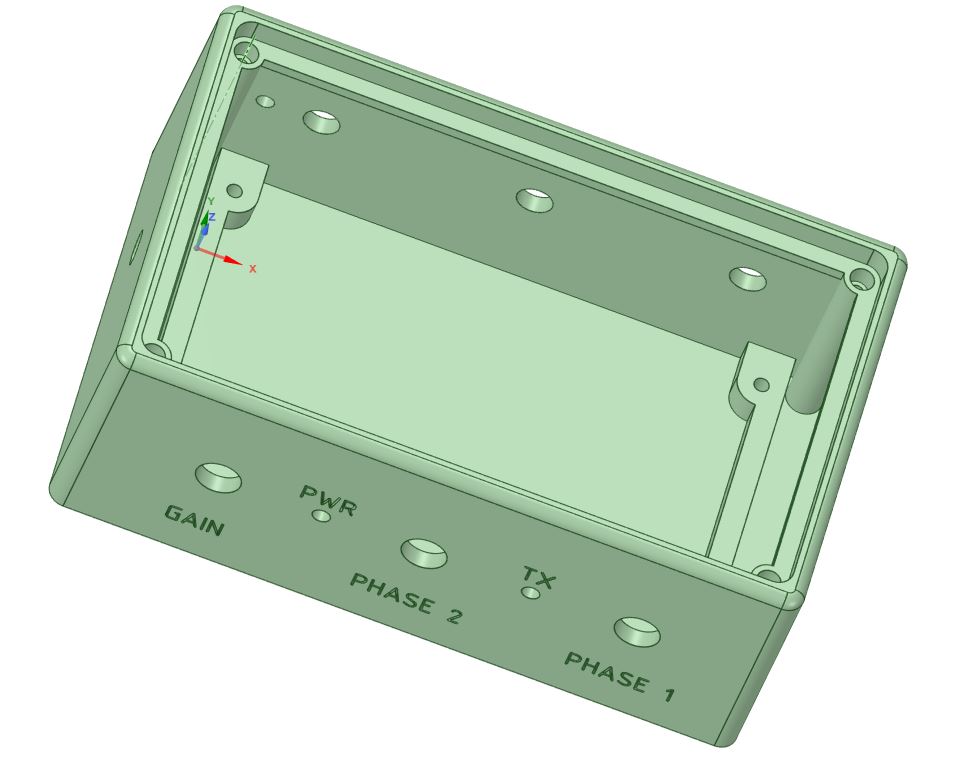

A 3d printed box for the Noise Canceller courtesy of Gary VK6GS
First up, it is important to note that the files presented here are for the original pcb which was 96 x 52mm, but those with the know-how should be able to easily modify them for the new pcb - 100 x 55mm.
I will be the first to say I have little knowledge of 3d printing, although I did try to order a printer a little while ago to learn about the process (the Creality website let me get to the end of the checkout process and then politely told me they didn't ship to South Australia - morons).
So, below are the pictures and files that Gary sent me, with permission to post them here. He did say that he used small magnets in the corners to hold the lid on.
Update - a note from Gary - "The magnets came from Ebay - 100x Super Strong Round Disc Magnets Rare-Earth Neodymium Magnet Cuboid Cylinder size 4mm x 4mm (actual size was 4mm x 3.69) I used 8, but be sure they are inserted with correct polarity so as to attract and not repell!!"
(Click pictures for larger view. Click again to close.)
Downloads
As with all information and files on my website, these files are for personal, non-commercial use only. I have removed the files for the box as they are not suitable for the current version of the pcb.
